Description

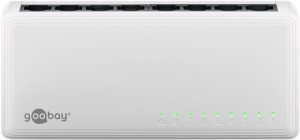

8x RJ45 sockets, autonegotiation, 1000 Mbit/s

Our network accessories transmit signals in top quality and speed. High-quality materials, robust housings and precisely fitting contacts distinguish our range of Ethernet switches. Goobay always provides the perfect products for your network needs – whether you aim to set up a home or company network. Simply. All. You need!

Features
-Thanks to the non-blocking architecture, data packages are forwarded and filtered at full transmission speed.
-Network switch supports MAC address auto-learning and auto-aging.
-Green Power Ethernet allows the operation of a simple power and cost-saving network (75 % less energy consumption).

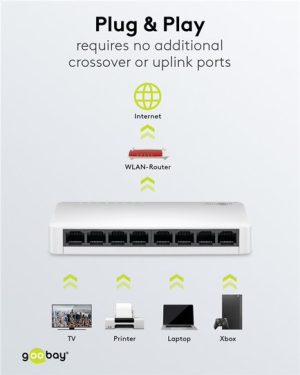

-Ethernet hub with Plug & Play application requires no additional crossover or uplink ports.
-Compatible with max. 10/100/1000 Mbit/s (half duplex) and max. 20/200/2000 Mbit/s (full duplex)
-Switching hub with fanless design for noise-free operation
-Supports the following standards: Auto Negotiation (Auto MDI/MDIX) for all RJ45 ports, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab

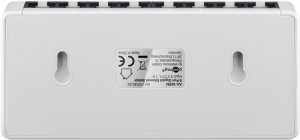

Mounting eyelets for wall installation.

Technical specifications

Connections
Connection, type: 8x RJ45 female (8P8C)

ErP
Average active efficiency: 75.46 %:
No-load power consumption: 0.039 W

General
Color: white
Operating temperature from: 0 °C
Operating temperature up to: 40 °C
Packaging type: Retail Box

Dimensions / Weight
Width: 130 mm
Height: 22 mm
depth: 59 mm
Weight: 80 g
Consumption Unit: 1 pc. in cardboard box

Scope of delivery
Assembly Material: 100-240 V (Euro), manual

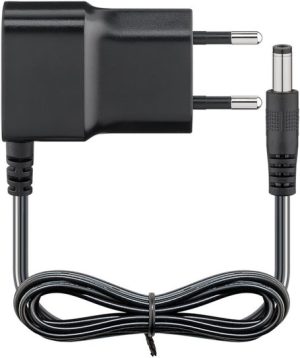

accessory – Power supply
Output current: 1 A
Input AC frequency: 50/60 Hz
Input voltage: 100-240 V
Model identifier: APS-P005050100W
Input current: 0.3 A
Output voltage: 5.0 V
Output power: 5.0 W
