Description

DS-2CE76D0T-EXLMF

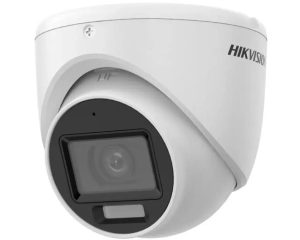

Hikvision 2MP Smart Hybrid Light Indoor Fixed Turret Camera

Features:

 High quality imaging with 2 MP, 1920 × 1080 resolution
 Fixed focal lens, 2.8 and 3.6 mm optional
 Up to 20 m IR distance for bright night imaging
 Up to 20 m white light distance for bright night imaging
 One port for 4 switchable signals (TVI/AHD/CVI/CVBS)
 Water and dust resistant (IP67)

Specification:

Camera
Image Sensor 2 MP CMOS
Max. Resolution 1920 (H) × 1080 (V)
Min. Illumination 0.02 Lux @ (F2.2, AGC ON), 0 Lux with IR
Shutter Time PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
Day ＆ Night ICR
Angle Adjustment Pan: 0 to 360°, Tilt: 0 to 75°, Rotate: 0 to 360°
Signal System PAL/NTSC

Lens
Lens Type Fixed focal lens, 2.8 and 3.6 mm optional
Focal Length ＆ FOV
2.8 mm, horizontal FOV: 97°, vertical FOV: 54°, diagonal FOV: 113°
3.6 mm, horizontal FOV: 77°, vertical FOV: 43°, diagonal FOV: 90°
Lens Mount M12
Illuminator
Supplement Light Type White Light,IR
Supplement Light Range
IR : Up to 20 m
White Light : Up to 20 m

Image Parameters Switch STD/HIGH-SAT/HIGHLIGHT
Image Settings Brightness, Sharpness, Smart IR
Frame Rate
TVI: 1080p @ 30 fps, 1080p @ 25 fps
AHD: 1080p @ 30 fps, 1080p @ 25 fps
CVI: 1080p @ 30 fps, 1080p @ 25 fps
CVBS: PAL/NTSC
Wide Dynamic Range (WDR) Digital WDR
Image Enhancement DWDR/BLC/HLC/Global
White Balance Auto/Manual
AGC Yes
Interface
Video Output Switchable TVI/AHD/CVI/CVBS

General
Material Metal
Dimension Ø 85.1mm × 80 mm (Ø 3.4″ x 3.1″)
Weight Max. 290 g (0.64 lb.)
Operating Condition -40 °C to 60 °C (-40 °F to 140 °F). Humidity: 90% or less (non-condensation)
Communication HIKVISION-C
Language English
Power Supply
12 VDC ± 25%, Max. 3.2 W
