Description

for TVs from 43 to 100 inch (109-254 cm), tiltable up to 75 kg

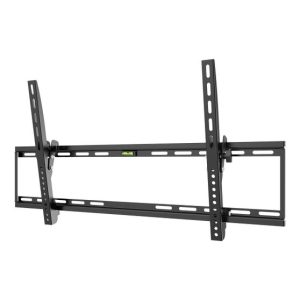

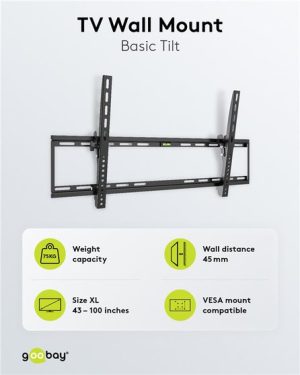

The tilting TV wall mount for every 43 to 100 inch (109-254 cm) TV with up to 75 kg. It can be tilted from 0° to 10°. The super slim design is only 45 mm away from the wall and complements the sleek look of ultra-thin TVs. It is characterized by an open design that maximizes airflow to the devices and provides easy access to the rear of the components. The TV can be moved to the left and right on the wall plate to position it precisely.

Features:

-The flat wall mount keeps the TV elegantly flat and space-saving on the wall with only 45 mm and can also be tilted up to 10°.
-The open frame structure supports ventilation of the TV and allows access to the rear connections.

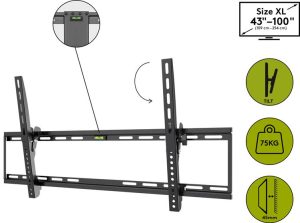

-The integrated spirit level ensures easy alignment of the installation.
-Suitable wall bracket for most flat and curved televisions of all popular brands (e. g. Samsung (also QLED and LED), Sony, Philips, LG) and sizes (e. g. 50 inch, 55 inch, 58 inch, 65 inch, 75 inch, 85 inch)
-Easy mounting and compatible with VESA standards 200×200, 300×300, 400×200, 400×400, 600×400, 800×400.

Technical specifications

Performance
Recommended screen size: XL (109-254cm / 43-100″)
screen Size: 109 – 254 cm
maximum load: 75 kg
wall distance: 45

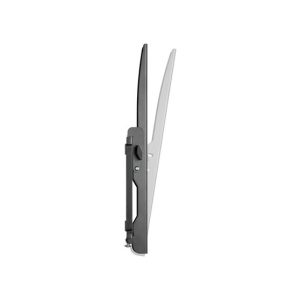

inclination and tilting ranges: 10 °
VESA (FDMI): 200 x 200 mm, 300 x 300 mm, 400 x 200 mm, 400 x 400 mm, 600 x 400 mm, 800 x 400 mm

General
Color: black
Material: steel (powder-coated)
Warranty: 5 years
Packaging type: Retail Box

Dimensions / Weight
Width: 864 mm
Height: 440 mm
depth: 45 mm
Weight: 2900 g
