Description

for toggling between 2x HDMI™ devices connected to 1x HDMI™ display

With the bidirectional HDMI™ switcher, you can conveniently switch your display, e.g. TV, monitor or projector, between 2x HDMI™ sources such as game consoles, DVD or Blu-ray players. This way, you avoid the hassle of reconnecting cables and laying an additional, second HDMI™ cable to the display.

Features
-The bi-directional HDMI™ switch routes 1x HDMI™ input signal to 2x HDMI™ end devices such as displays or optionally 2x input signals to 1x end device.
-The HDMI™ switcher 2 in 1 out supports 3D and resolutions up to 4K @ 60 Hz and is HDCP-compliant.

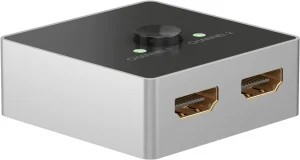

-Press the button to select either output 1 or 2 as output display.
-A convenient switch on the HDMI™ extender eliminates the need to reconnect the cables and protects the connections.
-Suitable for connecting e.g. Blu-ray player, SAT/TV receiver, computer, tablet, game consoles such as PS4 or Xbox to TV, monitor or projector.
-The HDMI™ switchbox 2×1 is powered via the connected HDMI™ device, not requiring an external power supply.
-Note: The HDMI™ switcher does not work as a splitter!

Technical specifications

Labelling
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade Dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Device connections

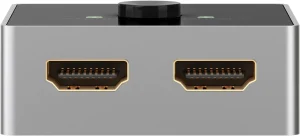

Input, type: 2x HDMI™ female (Type A)
Output, type: HDMI™ female (Type A)

Signal transmission
max. transmission rate: 18 Gbit/s, 4K Ultra HD 2160p (60 Hz)
bidirectional
supported audio standards: Dolby Atmos, Dolby Digital HD (DTS HD), Dolby Digital TrueHD, Dolby Digital 5.1 (AC-3), Dolby 5.1, Dolby 7.1, LPCM, Stereo, Enhanced Audio Return Channel (eARC), Audio Return Channel (ARC)
other supported standards: HDCP 2.2, HDCP 1.4
Supported video standards: 4K Ultra HD 2160p (60 Hz), 4K Ultra HD 2160p (30 Hz), Full HD 1080p (60 Hz), Full HD 1080i (60 Hz), 3D

Dimensions / Weight
Length: 55 mm
Width: 55 mm
Height: 22.5 mm
Weight: 59 g
