splits 1x HDMI™ input signal into 4x HDMI™ output signals
Features
-The HDMI™ splitter duplicates 1x HDMI™ input signal to up to 4x HDMI™ outputs such as TV set, monitor or projector.
-The HDMI™ multi connector mirrors audio and video signals to the connected devices, e.g. for simultaneous projection in different rooms.
-The HDMI™ splitter box 1x4 supports resolutions up to 4K @ 30 Hz (backward compatible).

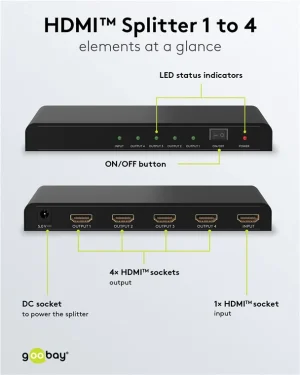

-The LED display of the HDMI™ extender indicates which connections are activated.

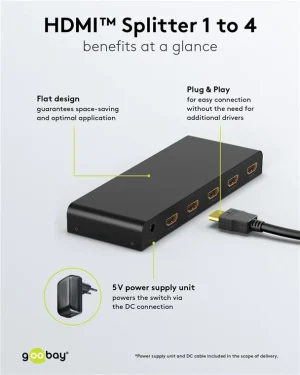

-HDMI™ adapter 1 in 4 out in a flat design, equipped with heat-dissipating aluminium housing and gold-plated connectors.
-Plug & Play allows for an easy connection without the need to install additional drivers.
-Powered via 5 V power supply unit and DC connector (both included in the scope of delivery).
Technical specifications
Labelling
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade Dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
Connections
Connection, type: HDMI™ female (Type A)
Device connections
Input, type: HDMI™ female (Type A)
Output, type: 4 HDMI™ ports (type A)
Signal transmission
max. transmission rate: 10.2 Gbit/s, 4K Ultra HD 2160p (30 Hz)
Supported video standards: 4K Ultra HD 2160p (30 Hz), Full HD 1080p (60 Hz), Full HD 1080i (60 Hz), 3D, HDCP
supported audio standards: Dolby Atmos, Dolby Digital HD (DTS HD), Dolby Digital TrueHD, Dolby Digital 5.1 (AC-3), Dolby 5.1, Dolby 7.1, LPCM, Stereo, Audio Return Channel (ARC)
other supported standards: HDCP 1.4, HDCP 1.3
unidirectional
Dimensions / Weight
Length: 178 mm
Width: 67 mm
Height: 20 mm
Weight: 275 g
